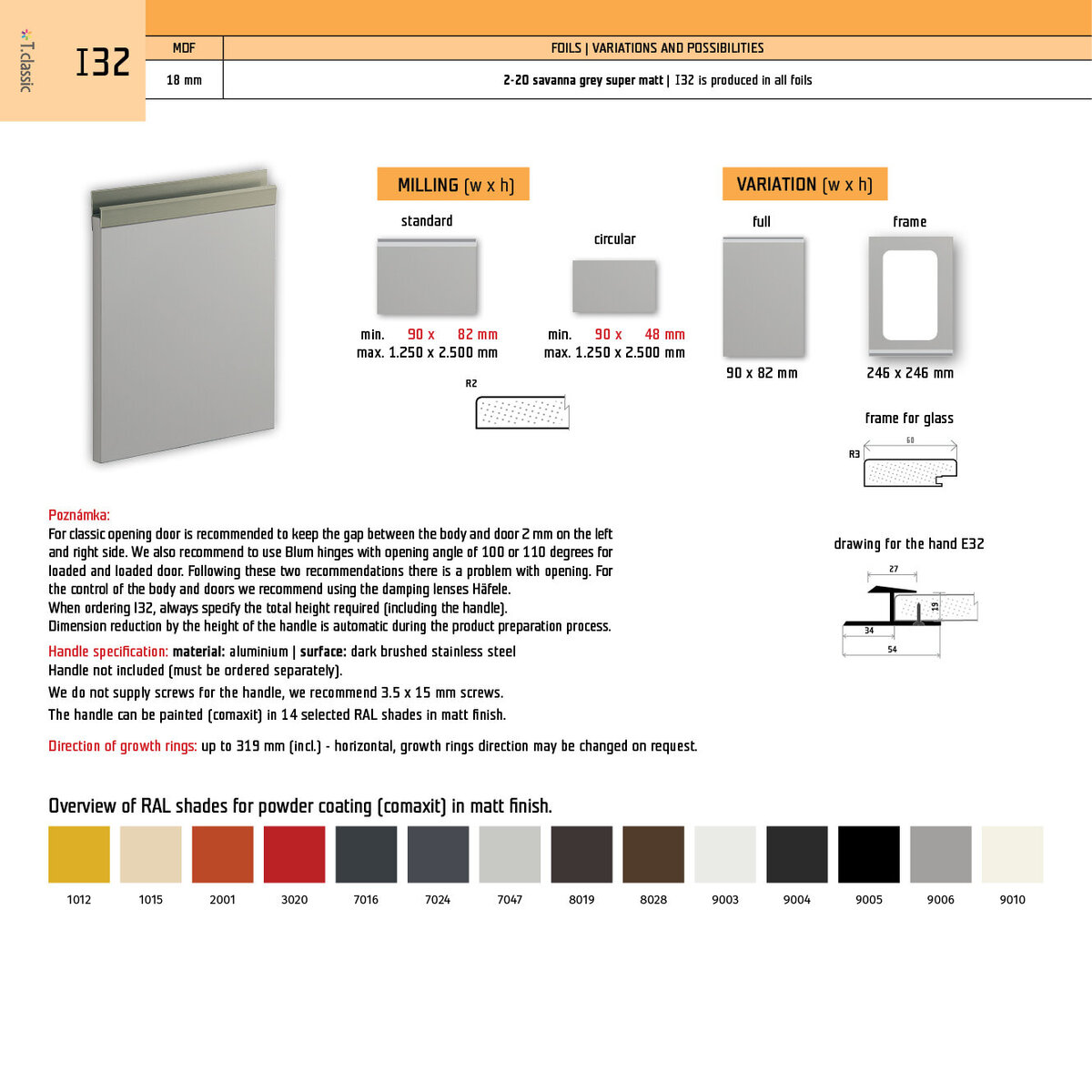

T.classic - Foil doors – Handle shapes
The metal door handle is structurally identical to shape I31
but differs only in surface finish.
Shape I32 is available in all foils. Perimeter milling R2.
This shape cannot be patinated.
Specifications: Material: aluminum, surface: brushed dark stainless steel.
The handle can be painted in selected RAL colors in a matte finish.
The handle is not included in the delivery (must be ordered separately).
Displayed decor: 2-20 savanna gray supermat
Handle shape in offer Trachea - brushed stainless steel.
For classic opening door is recommended to keep the gap between the body and door 2 mm on the left and right side. We also recommend to use Blum hinges with opening angle of 100 or 110 degrees for loaded and loaded door Following these two recommendations there is a problem with opening. For the control of the body and doors we recommend using the damping lenses Häfele
can be found here
Decors
Woodgrain decors
The decors of this line have always been the most popular and in demand. Here you can find the majority of our woodgrain decor foils – from light to dark, from domestic to exotic.

1180 - oak halifax synchro

123 - snow white flute

124 - magnolia white

125 - magnolia cream

126 - magnolia grey

128 - blue flute

191 - white portuna

211 - winchester oak

213 - sonoma light oak

214 - natural oak

215 - sanremo oak

218 - vintage oak dark

219 - wotan oak

221 - jantar light oak

223 - artisan oak

224 - ribbeeck oak

225 - gray ribbeck oak

226 - justus oak

227 - flagstaff oak

230 - windy oak

234 - sand oak

237 - stirling oak

238 - grandson oak

239 - gray french oak

350 - Columbia walnut

357 - snow walnut

4001 - kaschmir beech

521 - honey alder

571 - calvados

650 - acacia

691 - light chestnut

812 - vintage pine

815 - bleached pine

831 - latte larch
Uni colours
As the name suggests, this Trendy line comprises modern decor foils. Fashion is changing all the time, and that is why this product line changes frequently: many foils come and go in an instant and are replaced with the latest items that dominate the furniture industry.
Naturalis
Concrete, marble, slate and other industrial decors
Trendy gloss
This Trendy line contains the Trendy high gloss group. High gloss surfaces are "In" all over the world, no wonder we keep on working and enhancing this product line. It deserves the attention…
Matte
High gloss foils have been booming the past couple of seasons, however, matte designs are the dark horse which is just kicking off. We are sure that the current modest size of this group will grow in a very short time…
Supermatte
High gloss foils have been booming the past couple of seasons, SUPERMATS are slowly replacing them

2-01 - snow white supermat
2-08 - caramel supermatte

2-10 - supermatte magnolia - kopie

2-15 - angora gray supermat
2-23 - kaschmir supermat

2-30 - gray supermat
2-40 - pearl gray supermat

2-45 - monument gray supermat
2-50 - stone gray supermat
2-60 - Cubanite gray supermat

2-70 - green supermat

2-75 - lichen green supermatt

2-80 - dark blue supermat

2-85 - Tuscan red supermat
2-90 - black supermat
ULTRA
New matt decors with a fine structure and exceptional mechanical resistance
Gloss – additional surface finish
Some woodgrain decors can be additionally refined by varnishing them. The varnish finish of woodgrain decors is very interesting, the color and structure of natural decors gains intensity and depth. The result is truly extraordinary.
Back sides
Options and design
Cut handles from aluminum profiles
Glass 4 mm

Glass C504 - Imagin Crepi 504
4 mm

Glass H570 - Imagin Chinchilla 570
4 mm

Glass K566 - Imagin Kathedral Klein 566
4 mm

Glass K572 - Imagin Kura 572
4 mm

Glass K597 - Imagin Krizet 597
4 mm

Glass L061 - Lacomat Classic
4 mm

Glass L262 - Lacomat Pavee
4 mm

Glass M042 - Matelux Clear
4 mm

Glass M092 - Imagin Mastercare 092
4 mm

Glass P001 - Planibel Clear (Float)
4 mm

Glass P005 - Planibel Clearvision (extra clear)
4 mm

Glass P020 - Planibel Bronze
4 mm
Glass 6 mm
Glass 4 mm

Glass C504-K - Imagin Crepi 504 - hardened
4 mm

Glass K566-K - Imagin Kathedral Klein 566 - hardened
4 mm

Glass K572-K - Imagin Kura 572 - hardened
4 mm

Glass M042-K - Matelux Clear - hardened
4 mm

Glass M092-K - Imagin Mastercare 092 - hardened
4 mm

Glass P001-K - Planibel Clear - hardened
tl. 4 mm

Glass P005-K - Planibel Cleavisionr - hardened
tl. 4 mm

Glass P020-K - Planibel Bronz - hardened
4 mm
